MT-SC1310/1550-80

1000Base-WDM Bi-Directional SFP Module

SC Simplex Connector
Single mode 1310/1550nm
Up to 80Km

80km fiber SFP module 1.25G 1310/1550

Description

This SFP module is designed for long-distance fiber optic communications, offering a transmission distance of up to 40 kilometers. It operates at a data rate of 1.25 Gbps and utilizes both 1310nm and 1550nm wavelengths for bidirectional data transmission.

Overview

Features

Long Reach: Supports transmission distances of up to 40 kilometers over single-mode fiber (SMF).
High Data Rate: Operates at 1.25 Gbps, suitable for various network applications.
Bidirectional Transmission: Uses both 1310nm and 1550nm wavelengths for simultaneous sending and receiving data.
Hot-Pluggable: Allows for easy insertion and removal without powering down the system.
Compact Design: Adheres to the Small
Form Factor Pluggable (SFP) standard for compatibility with various devices.
Digital Diagnostic Monitoring (DDM): Provides real-time monitoring of module parameters like temperature, laser bias current, and optical output power.

Wide Operating Temperature Range: Can operate in both standard (0°C to 70°C) and industrial (-40°C to 85°C) temperature environments.

Product Series	Fiber Optical Transceiver
Form Factor	SFP
Wavelength	1310nm-TX/1550nm-RX
Max Distance	80 km
Transmitter Power	-3 ~ +3 dBm
Connector	LC Simplex
Environment	Operating: 0°C to 70°c Storage: -40°C to 85°C
Application	1.25GBASE-LR/1.25GBASE-LW Ethernet 1.25G Fiber Channel 1.25G Data Centre Switches and Routers 1.25GE Network interface cards and fiber Media Convertors
Data Rate	1.25 Gb/s
Cable Type	SMF
Optical Components	DFB/PIN
Extinction ratio	> 3.5 db
Receiver Overload	> 0.5 dBm

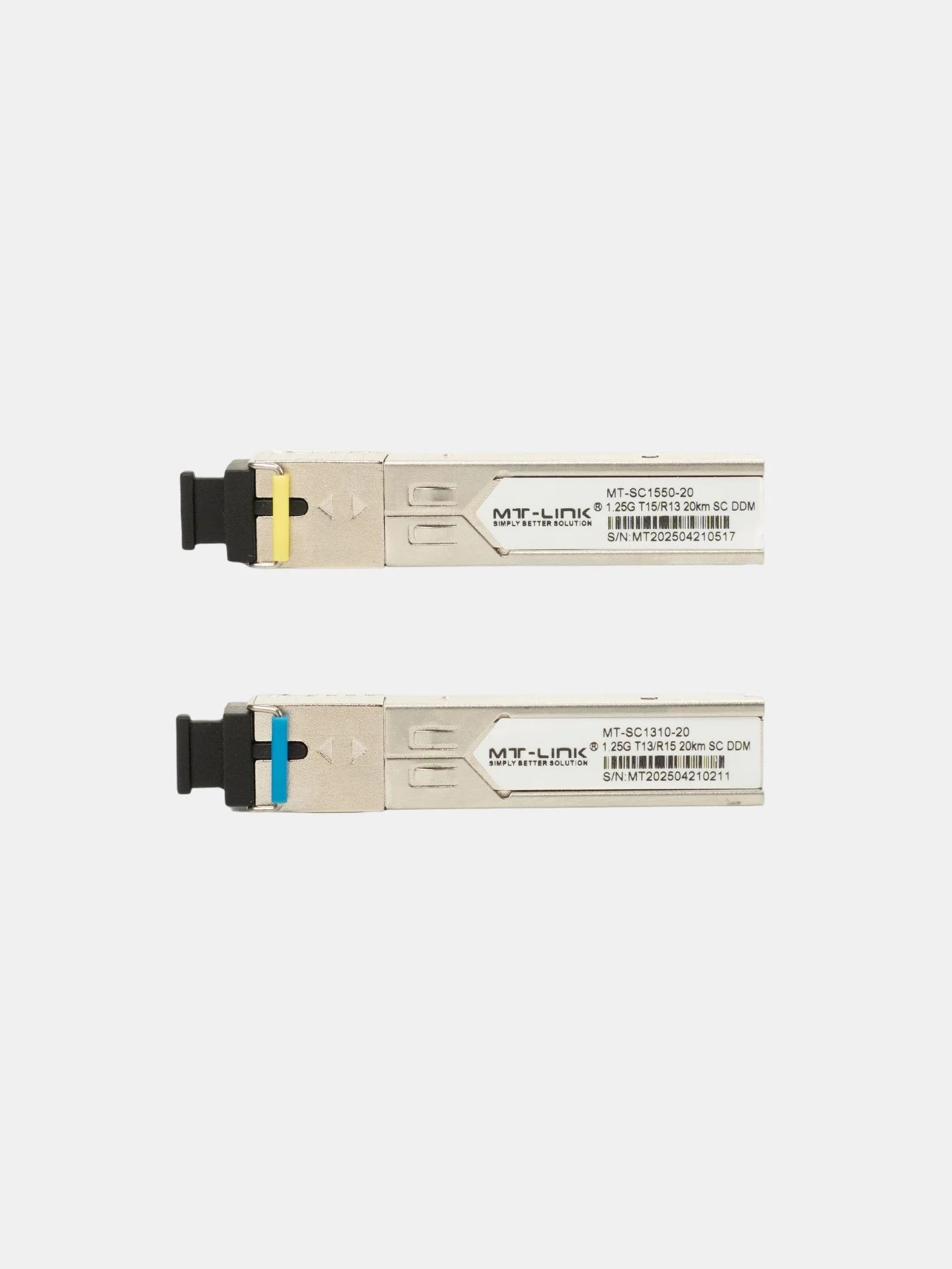

MT-SC1310/1550-20 (PAIR) ll UPTO 20KM ll - 1000Base-WDM Bi-Directional SFP Module

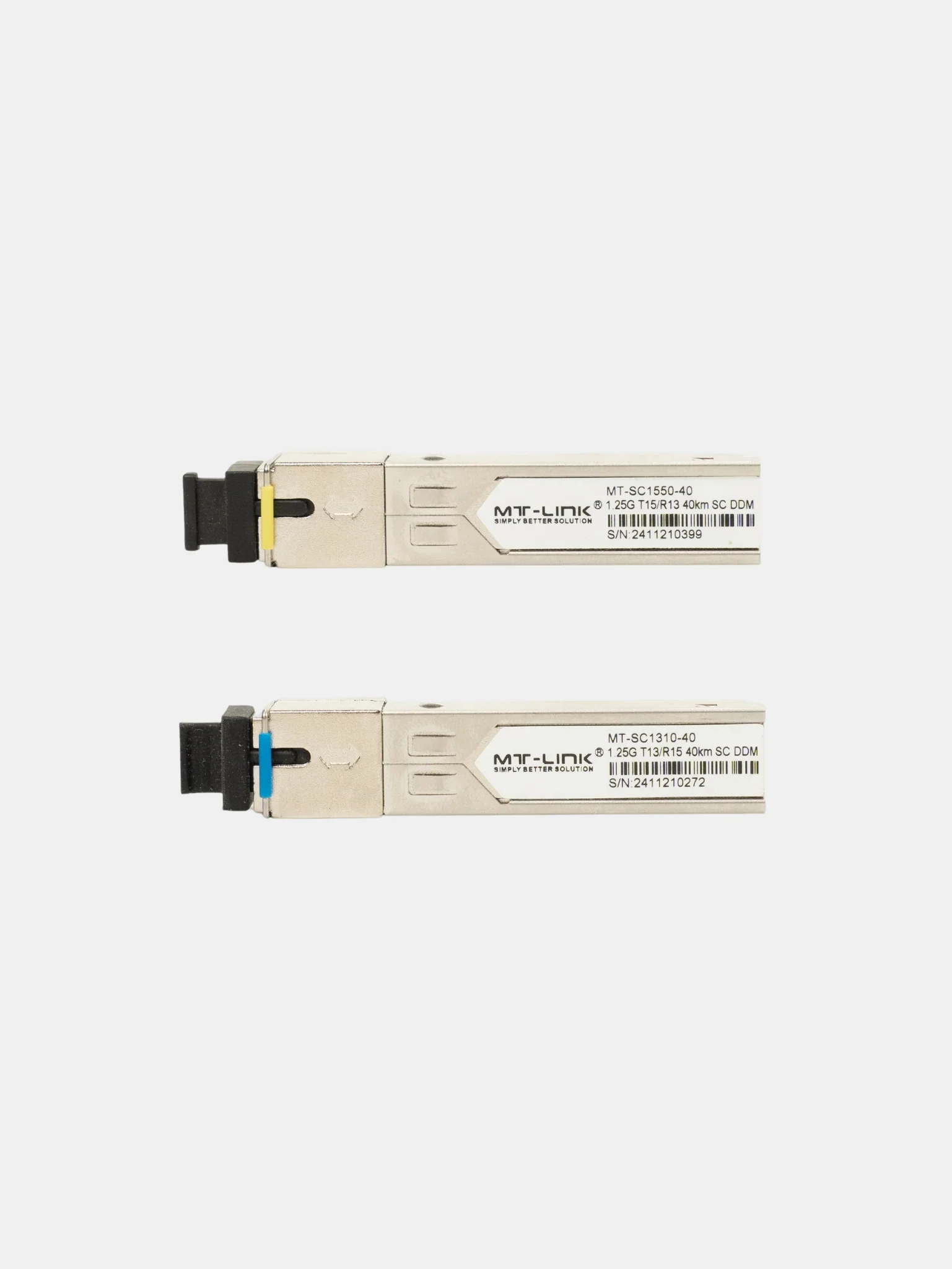

MT-SC1310/1550-40 (PAIR) - UPTO 40KM - 1000Base-WDM Bi-Directional SFP Module
