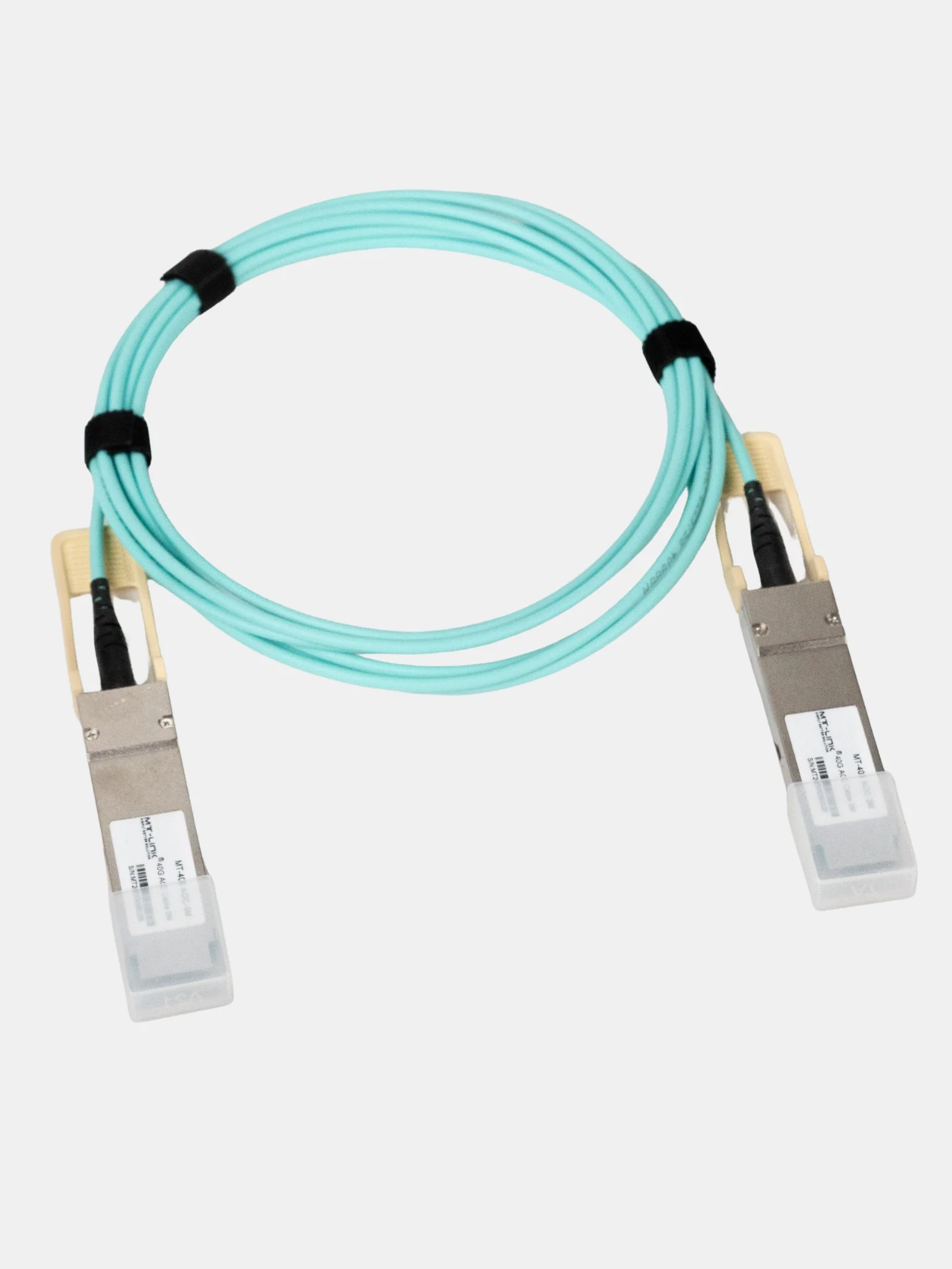

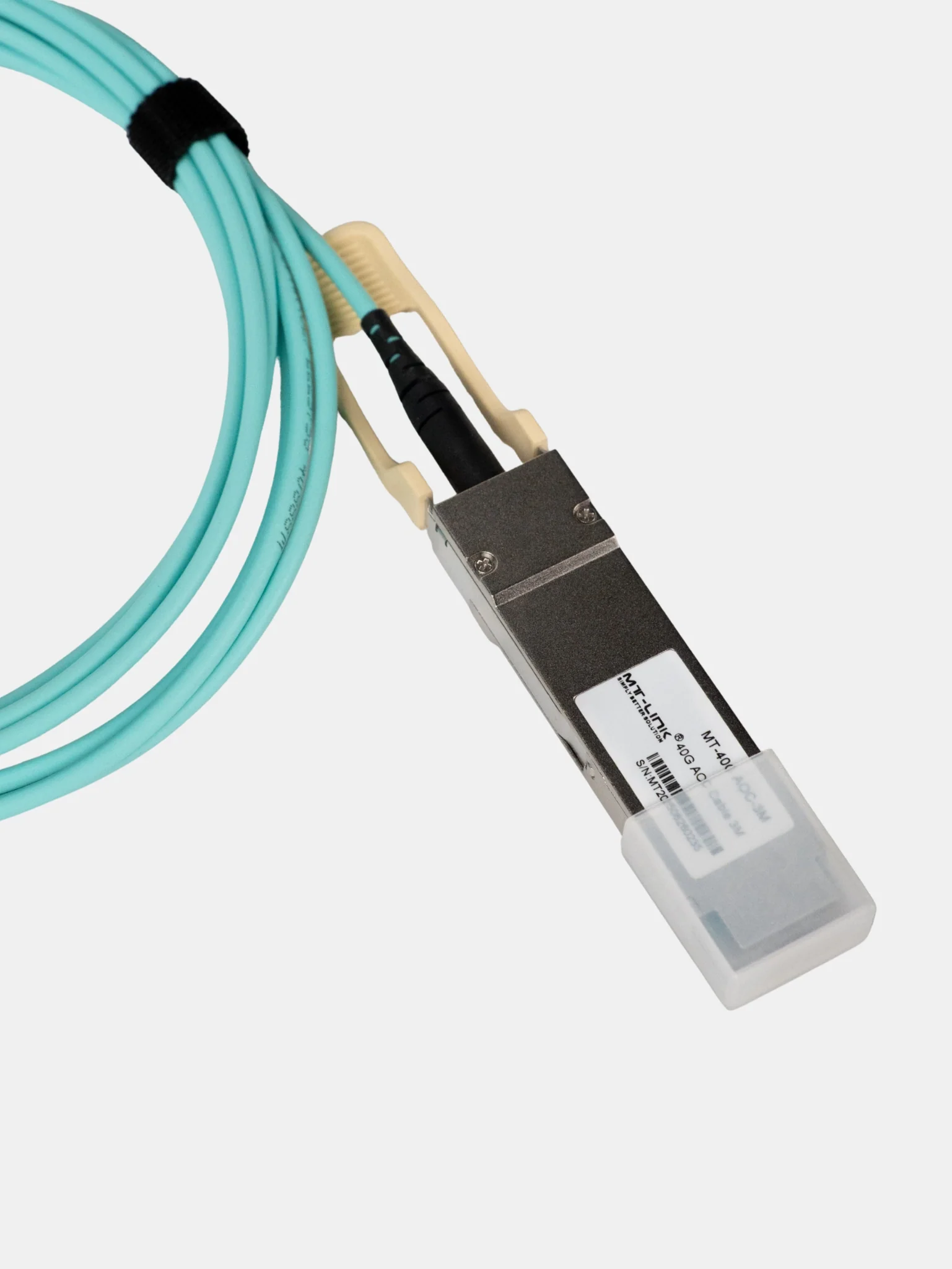

MT-SFP+AOC-3M

40G SFP+ Active Optical Cable (3 Meter)

40G SFP+ connector on both sides
Up to 3 m Distance

MT-Link 40G+ SFP+ AOC multi-mode (850nm)DAC cable

Description

MT-Link 40G+ SFP+ AOC multi-mode (850nm)DAC cable is a high-speed interconnect solution designed for data centers and high-performance computing environments. It provides a reliable and efficient way to connect active optical components (AOCs) over short distances. The cable utilizes multi-mode fiber and operates at a wavelength of 850nm to achieve a data transfer rate of 10 Gigabit Ethernet.

Overview

MT-Link 10G+ SFP+ AOC multi-mode (850nm)DAC cable is a high-speed interconnect solution designed for data centers and high-performance computing
environments. It provides a reliable and efficient way to connect active optical components (AOCs) over short distances. The cable utilizes multi-mode fiber and
operates at a wavelength of 850nm to achieve a data transfer rate of 10 Gigabit Ethernet.

Features

High-speed data transfer: Supports 10 Gigabit Ethernet for fast and efficient data transmission.
Short-distance connectivity: Ideal for connecting active optical components (AOCs) within data centers and high performance computing environments.
Multi-mode fiber: Utilizes multi-mode fiber for flexibility and cost-effectiveness.

Durable and reliable: Built to withstand harsh environments and provide long lasting performance

Model	MT-SFP+AOC-3M
Form Factorr	SFP+
Wavelength	850nm
Connector	male to male
Transmitter Type TX	VCSEL
Power	-7.3~-1dBm
Power budget	3.8dB
Typical Power Consumption	≤0.6W
DDM/DOM	Supported
Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Max Data Rate	10.3125Gbps
Max Cable Distance	300m@OM3/400m@OM4
Media	>MMF
Receiver Sensitivity	> < -11.1dBm
Reciever Overload	> 0.5dBm
Extinction Ratio	> >3dB
