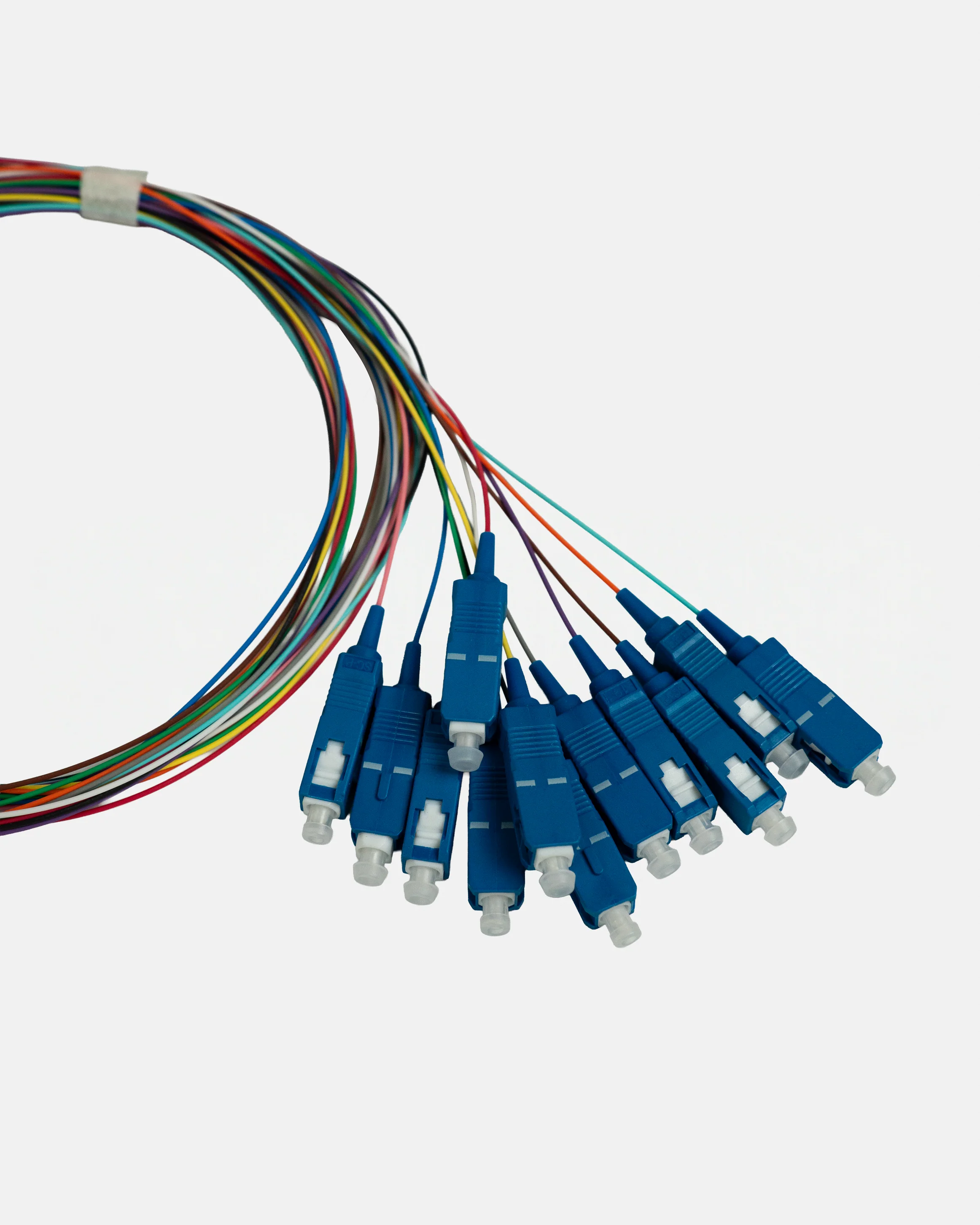

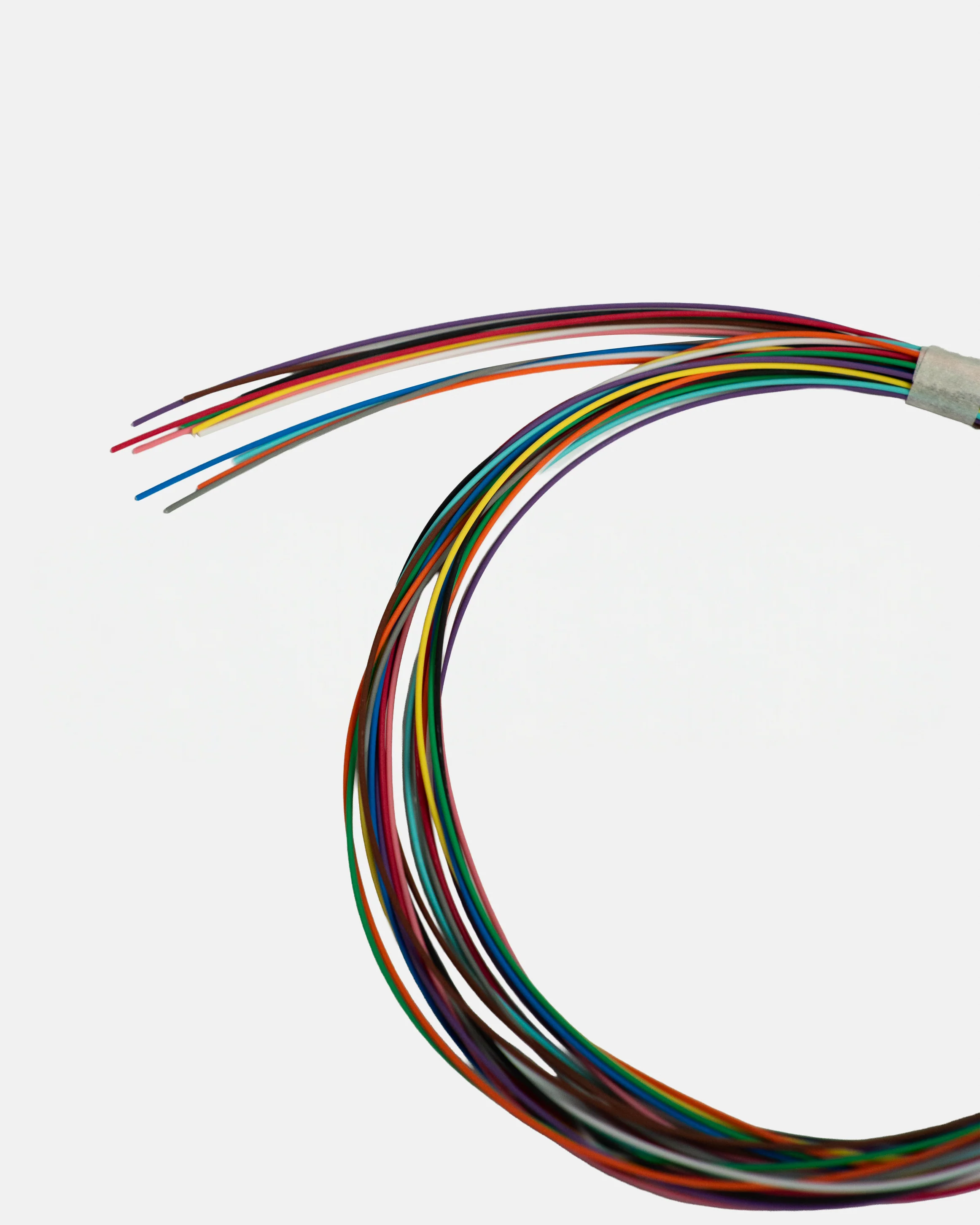

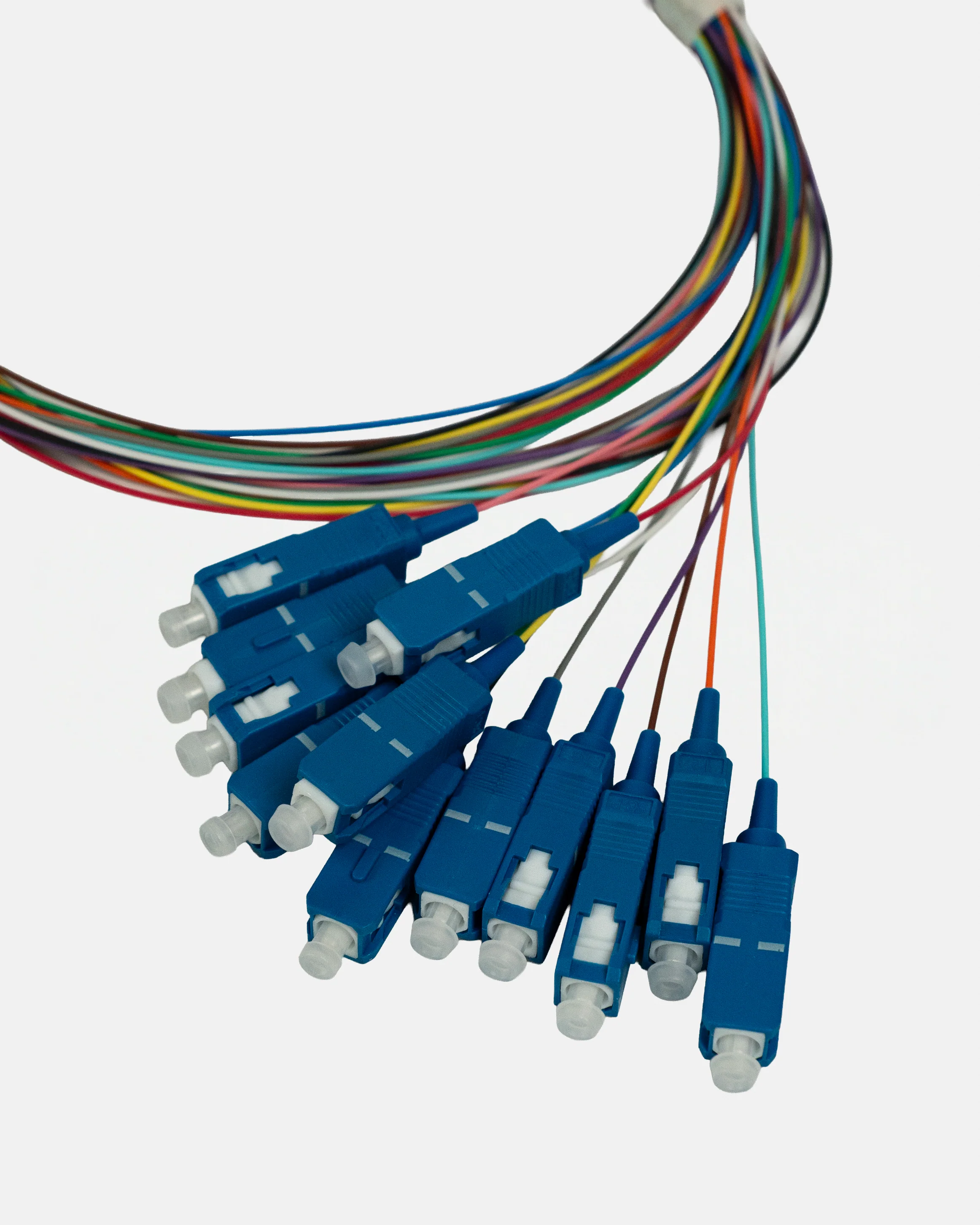

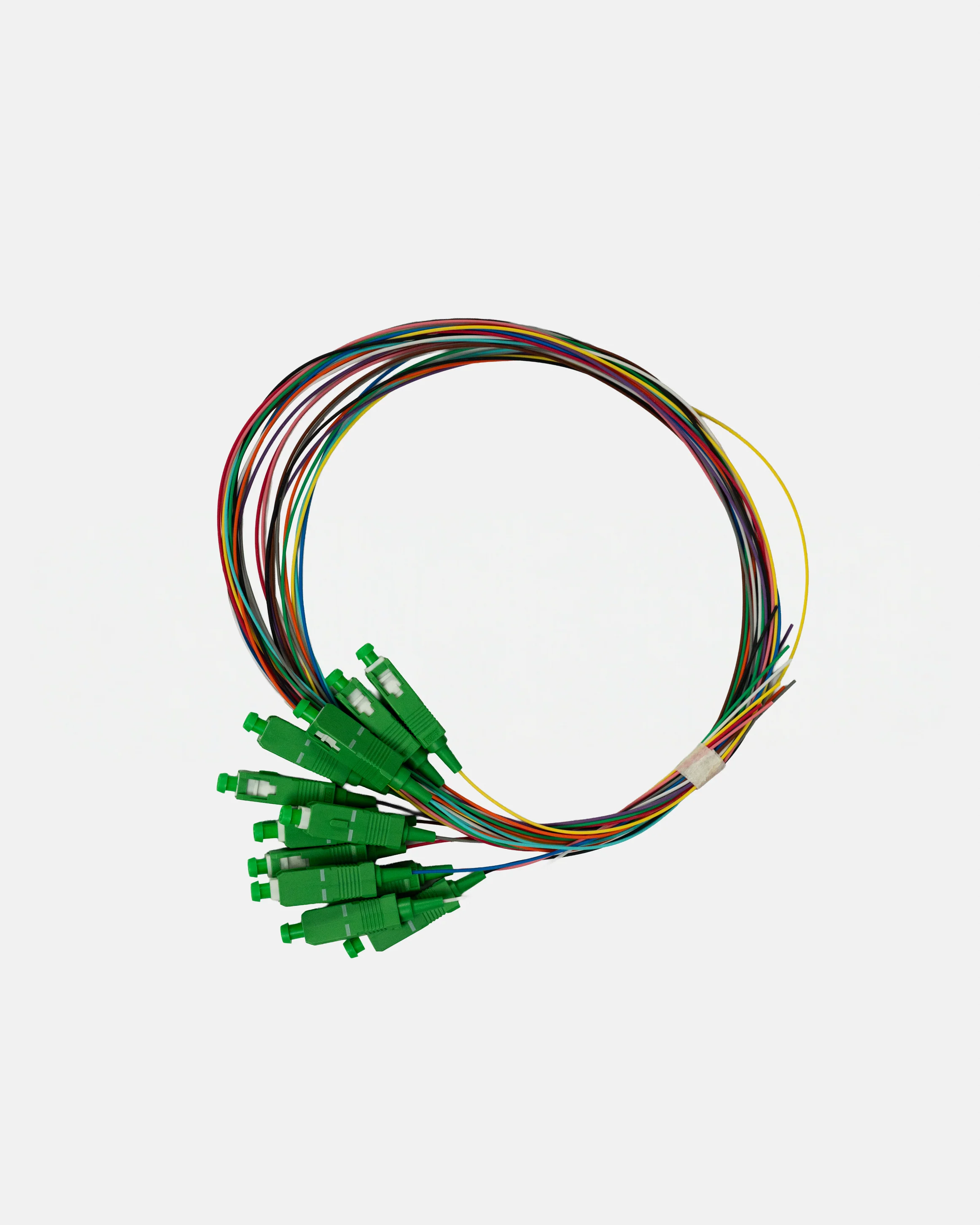

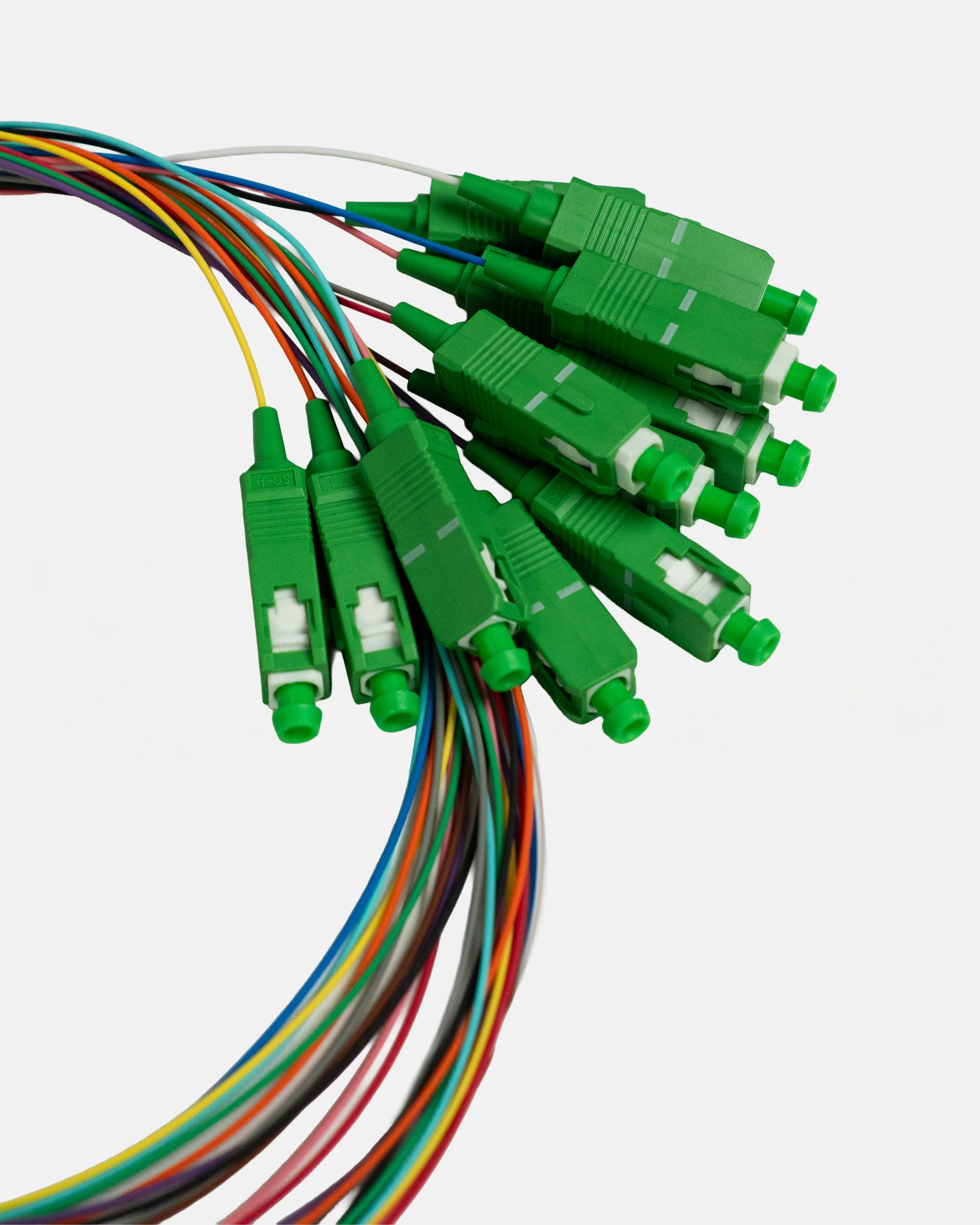

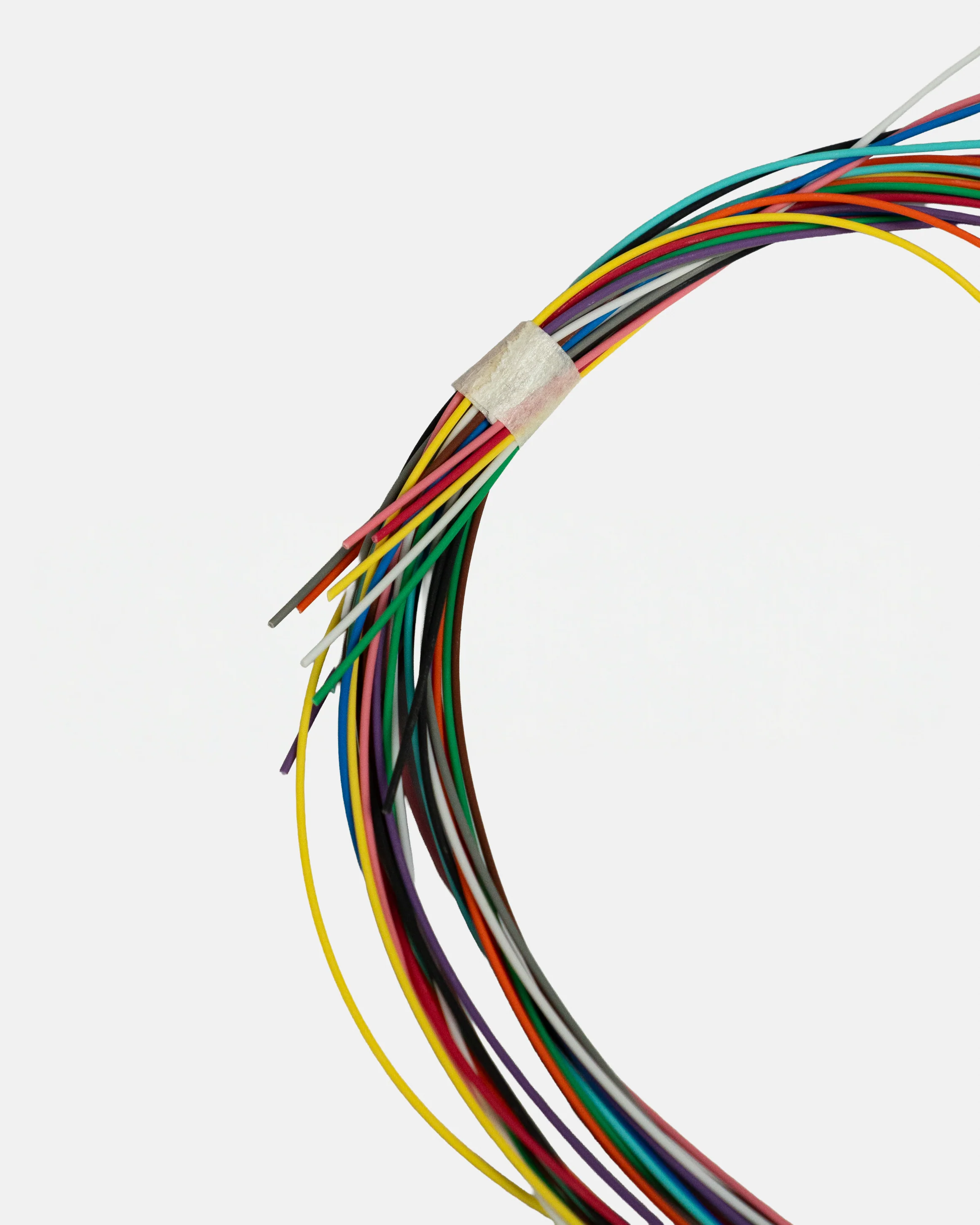

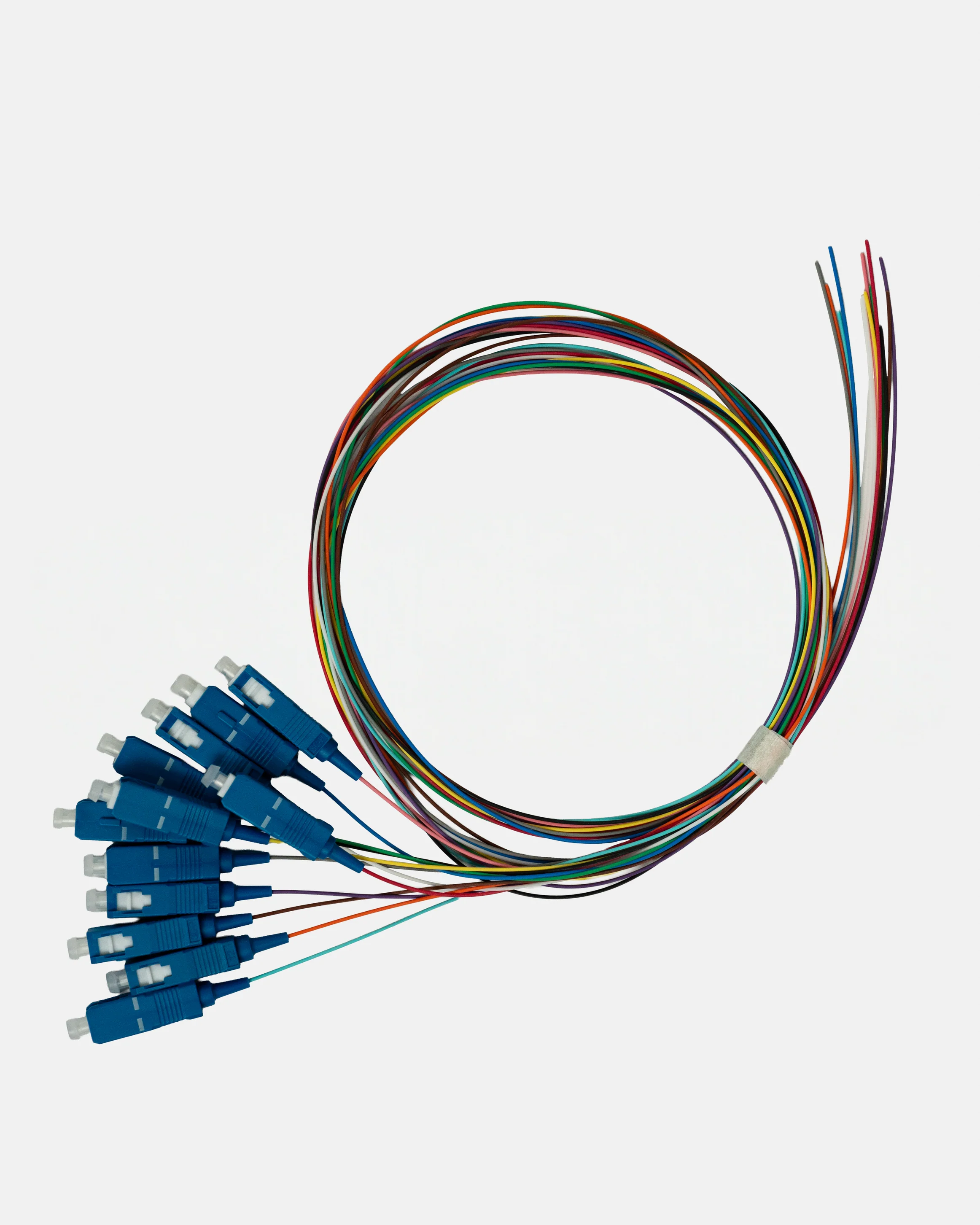

MT-LINK Fiber Optic Pigtail – SC/UPC & SC/APC Single Mode (SM) – 12 Color Set

Overview

MT-LINK Fiber Optic Pigtail SC/UPC & SC/APC Single Mode ek professional fiber termination solution hai jo ODF, FTB aur patch panel me fiber splicing ke liye use hota hai.
Ye product 12 alag-alag color coded single pigtails ka set hota hai — har fiber individually loose hoti hai, koi 12-core cable nahi hoti.

Is pigtail set me factory-terminated SC connectors lage hote hain jo stable signal, low loss aur long-term performance ensure karte hain.

---

Key Features

• Connector Type Options:

  • SC / UPC – Flat polish, low insertion loss

  • SC / APC – 8° angled polish, ultra-low reflection

• Fiber Mode: Single Mode (SM – 9/125µm)

• Fiber Count: 12 Individual Color-Coded Pigtails

• Cable Diameter: 0.9mm Tight Buffer

• Insertion Loss: ≤ 0.3 dB

• Return Loss:

  • SC/UPC ≥ 50 dB

  • SC/APC ≥ 60 dB

• Ferrule: Ceramic Zirconia

• Standards: Telcordia, IEC, RoHS

---

12 Standard Fiber Colors

Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua

---

Applications

• Optical Distribution Frame (ODF)

• Fiber Termination Box (FTB)

• FTTH / FTTB Networks

• GPON / EPON / XPON Systems

• Telecom Rooms & ISP Installations

---

Product Benefits

• Factory terminated SC connectors – splicing fast aur clean hoti hai

• 12 color fibers – fiber identification aur management easy hota hai

• 0.9mm tight buffer – fiber ko bending aur breakage se protect karta hai

• SC/UPC normal networks ke liye & SC/APC long-distance high quality links ke liye best option
